EVACUATED tUBE COLLECTOR

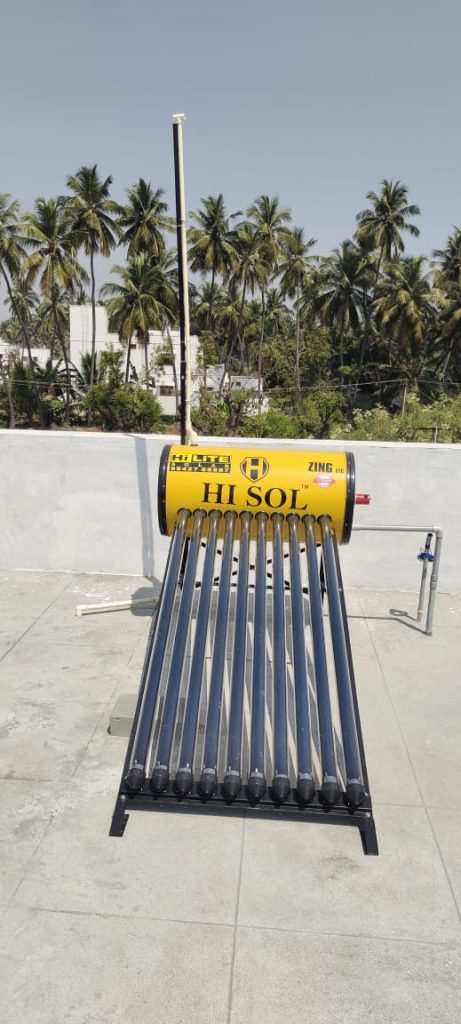

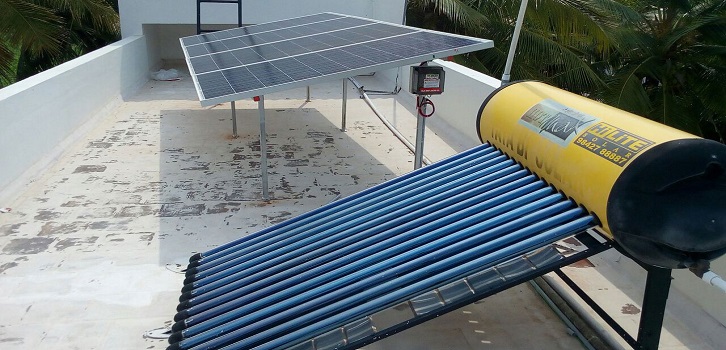

Solar Water Heater ETC 100 LPD – Domestic
Specification
| Solar Hot Water Storage Details | |
|---|---|
| Tank Design | Tube - In - Tank Design System |
| Tank Capacity Excluding Tubes (Excluding the tube Volume) | 100 Litres |
| Tank Material | Steel Metal Formed Desh end |
| Tank Wall thickness | 2.50mm End Dish & 2.0 mm Tank |
| Tank Insulation | High Density 32Kg/m3-55mm PUF Insulation |
| Tank Primary Corrosion Protection Coating | 3 Layer High Build Ceramic Filled Food Grade Epoxy Coating |
| Tank Secondary Corrosion Protection | Magnesium Alloy / Aluminum Alloy based self Sacrificial Anode System |
| Maintenance Doors on the Tank Dish ends | Yes |
| Outer Tank Cladding | Galvanized Steel Pure Polyester UV Resistant Power Coating |
| Pipe Termination | Stainless Steel - SS- 304 Grade |
| Back Up Electrical Booster | Suitable Electrical Booster Built in the Tank |
| Solar Collector Details | |
| Evacuated Vacuum Tube ( EVT ) Specification | High Performance Triple Layer Selective Coated Vacuum Insulated Evacuated Glass Tubes |
| Evacuated Vacuum Tube Size | 58.0 mm Diameter x 1800 mm Long |
| Number of EVT per system ( as per MNRE Specifications ) | 10 |
| EVT Sealing Gasket | High Performance Food Grade Silicone Gasket |
| Dust Protection Covers | UV Resistant Ethylene Propylene Diene Terpolymer |
| EVT Retaining End Caps | UV Resistant Injection moulded |
| Tank & Collector Structure Details | |
| Structure Material | Steel Angle to ISI Specification |
| Structure Design | Modular Design Steel Angle with Mig Welding |
| Corrosion Protection | Pure Polyester UV Resistant Power Coating |
| Warranty (Inner Hot Water Storage Tank) | 5 Years Warranty (Unconditional Water Quality) |
Ceramic Lined Tank
Hot water upto 60O C
PUF Insulation
Suitable for Hard Water
Ultraviolet Protection
Corrosion Resistant
MNRE Approved
5 Years Warranty
| Applications
- Bathing
- Washing
- Cleaning
- Cooking
- Pre-heating to Boilers
- Processing Industrials
- Drying
| Usage
- Residential
- Hospitals
- Hotels
- Apartments
- Schools
- Institutions
| Features
- Durable leakage free tank with industry best hard water tolerance
- High-transmissivity triple layered clog and choke free collector tubes
- Plumberless push and lock piping design
- Space saver short boy design
- UV resistant polyester powder coated steel structure
| Benefits
- Non-corrosive 5mm polymer tank ensuring long lasting years of service
- Overnight temperature drop less than 3°C
- Daily hot water up to 60°C
- Cost Saving innovative internal plumbing
- Fits easily in constrained space
- Save up to ₹ 15,000 per year*
| Components
- 103 or 206 liters polymer storage tank
- 220mm diameter pressure equalizer float chamber with brass value
- 1.66m2 or 3.33m2 evacuated tube collector
- Polyester powder coated steel structure
- Air-vent assembly kit of 1.5m piping with elbows and bends
